umm don't really know what you mean by "lead wires".

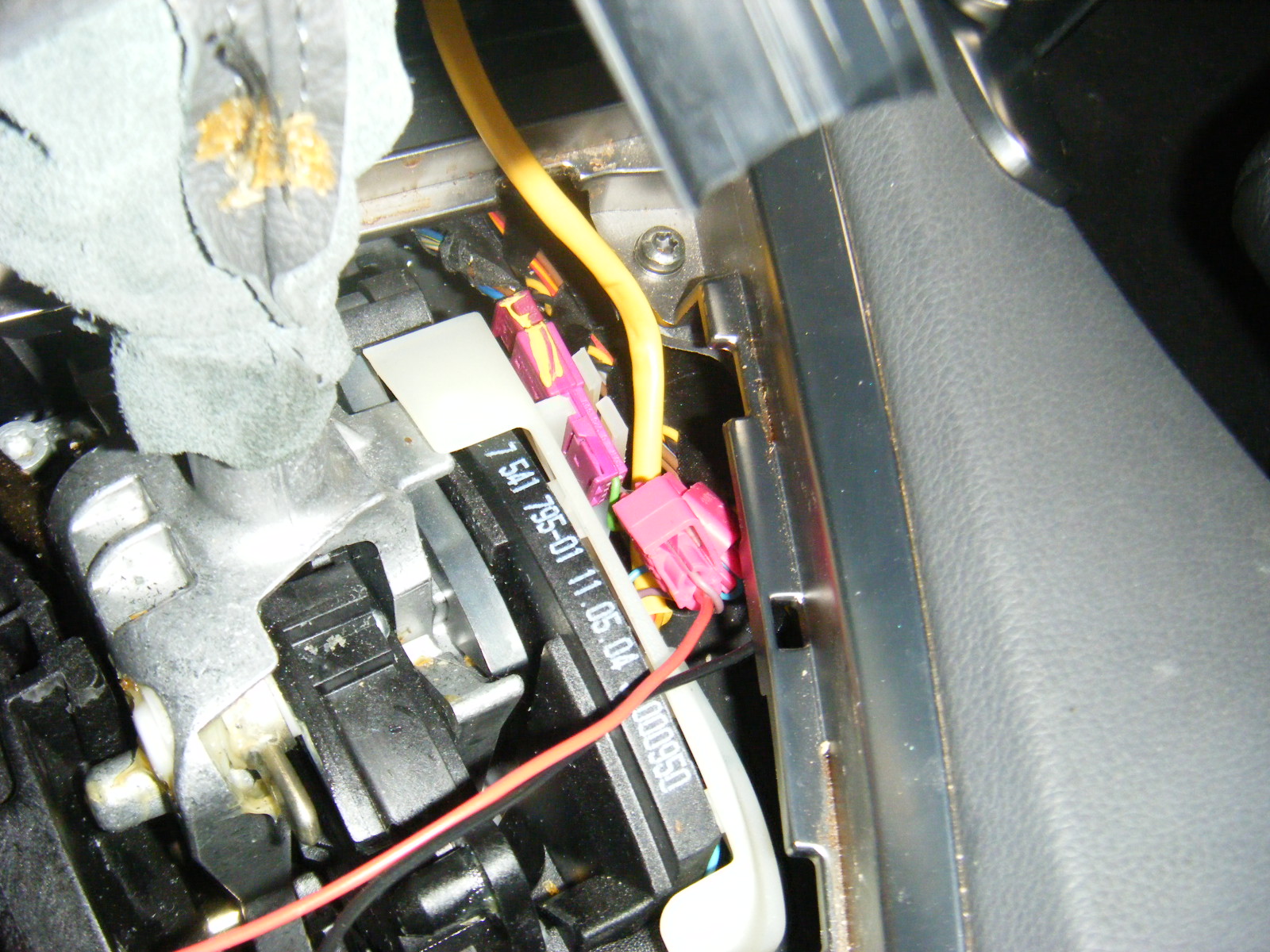

The way it works is that when either of the 2 middle wires by the shifter gets a ground signal (See pic), it shifts either up or down. Basically what i did was use 2 push buttons that have 2 connectors at the end. 1 wire from each button goes to the coil spring. That then comes out at the other end of the coil spring and goes to the 2 middle wires (brown=shift down, blue=shift up) on the connector where the shift knob is (see pic again). The other wire from each button goes to a ground wire in the steering wheel. I used red/white on the left multifunction connector for the ground of the left button and red/black for the right multifunction connector for the ground on the right button. So when you push either button, the circuit completes and a ground signal is given to the wire where the shifter is(see pic) that then causes the gears to shift up or down. If you don't have a heated steering wheel it's pretty simple but if you do, then it becomes more tricky.
Hope this helped and makes sense. Once i get a hold of a coilspring without heated steering wheel i'll post a detailed DIY. Also, right now i am tapping into wires and soldered some components. On monday i am ordering the proper connectors to make it truly a plug n play deal
This did take a lot of time and endless days of studying wiring diagrams, not to mention the first coil spring i had so sacrifice to get it right so if you find this thread helpful in any way, donations via paypal to paddleshiftproject@hotmail.com are very appreciated!
As I said, anyone wanting to get this mod, send me your steering wheel and coil spring and i'll do a detailed DIY Unfortunately, at the end of this project i just wanted to get my ride back together and in the process didn't focus on taking pics
Also, I wanted to mention again that any DIY instructions including all pictures posted by me at this point are intellectual property of myself aka www.aftermarketbulbsshop.com and www.E60.net Reposting this information in other forums especially bimmerfest will not be tolerated. If you want to check it out, come to www.e60.net or post a link to this thread on other forums! A full detailed DIY will be up shortly.
The way it works is that when either of the 2 middle wires by the shifter gets a ground signal (See pic), it shifts either up or down. Basically what i did was use 2 push buttons that have 2 connectors at the end. 1 wire from each button goes to the coil spring. That then comes out at the other end of the coil spring and goes to the 2 middle wires (brown=shift down, blue=shift up) on the connector where the shift knob is (see pic again). The other wire from each button goes to a ground wire in the steering wheel. I used red/white on the left multifunction connector for the ground of the left button and red/black for the right multifunction connector for the ground on the right button. So when you push either button, the circuit completes and a ground signal is given to the wire where the shifter is(see pic) that then causes the gears to shift up or down. If you don't have a heated steering wheel it's pretty simple but if you do, then it becomes more tricky.
Hope this helped and makes sense. Once i get a hold of a coilspring without heated steering wheel i'll post a detailed DIY. Also, right now i am tapping into wires and soldered some components. On monday i am ordering the proper connectors to make it truly a plug n play deal
This did take a lot of time and endless days of studying wiring diagrams, not to mention the first coil spring i had so sacrifice to get it right so if you find this thread helpful in any way, donations via paypal to paddleshiftproject@hotmail.com are very appreciated!
As I said, anyone wanting to get this mod, send me your steering wheel and coil spring and i'll do a detailed DIY
Unfortunately, at the end of this project i just wanted to get my ride back together and in the process didn't focus on taking picsAlso, I wanted to mention again that any DIY instructions including all pictures posted by me at this point are intellectual property of myself aka www.aftermarketbulbsshop.com and www.E60.net Reposting this information in other forums especially bimmerfest will not be tolerated. If you want to check it out, come to www.e60.net or post a link to this thread on other forums! A full detailed DIY will be up shortly.
