Where can I find the fuse diagram?

Reply Subscribe

Thread Tools

Search this Thread

Sep 25, 2009 | 05:57 PM

r9ndy

Thread Starter

Contributors

Joined: Mar 2007

Posts: 919

Likes: 1

From: San Francisco, CA

My Ride: 2005 545i Black Sapphire - Fully Loaded

Model Year: 545i 2005

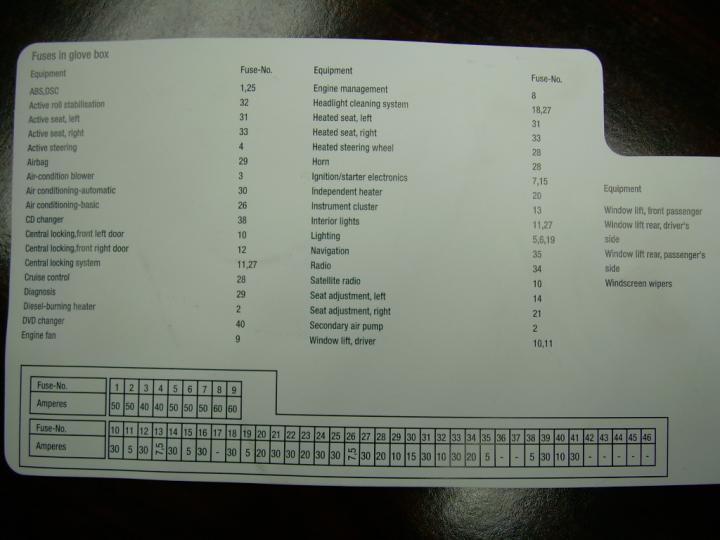

Where can I find the fuse diagram? Does anyone know which is the fuse for headlights?

Sep 25, 2009 | 06:02 PM

ricky1329

Contributors

Joined: Sep 2007

Posts: 3,019

Likes: 0

From: Hong Kong

My Ride: 530i Mods: M5 sporty package, M5 Steering wheel, Sprint Booster

Quote:

Originally Posted by r9ndy' post='1017291' date='Sep 26 2009, 09:57 AM

Where can I find the fuse diagram? Does anyone know which is the fuse for headlights?

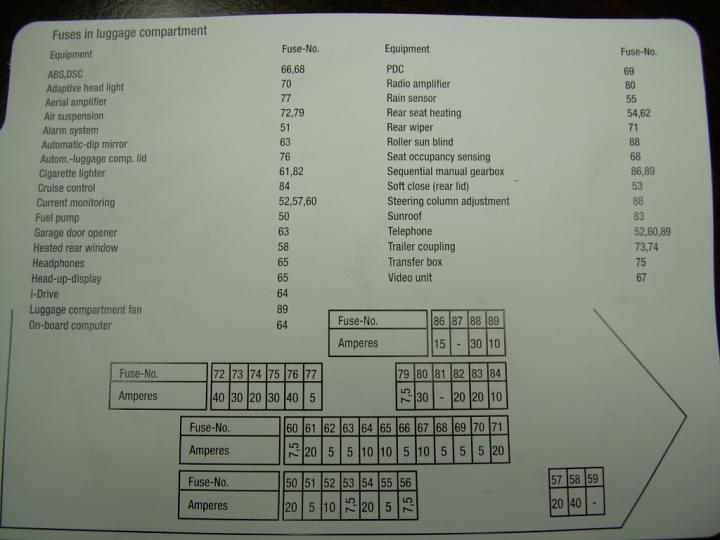

Fuse diagram in your first-aid box

Sep 25, 2009 | 06:36 PM

txag_530i

Senior Members

Joined: Nov 2008

Posts: 670

Likes: 1

From: Houston, TX

My Ride: 2006 530i, Jet Black, Tan, Premium, Steptronic

Quote:

Originally Posted by ricky1329' post='1017295' date='Sep 25 2009, 09:02 PM

Fuse diagram in your first-aid box

...which is located in the trunk.

Oct 2, 2009 | 07:53 PM

P1100

Members

Joined: Apr 2009

Posts: 26

Likes: 0

thanks, i was looking for that diagram. Thought it might be in the manual but it isn't

Oct 3, 2009 | 06:36 AM

chris f

Members

Joined: Aug 2008

Posts: 189

Likes: 0

From: Kent, England.

Quote:

Originally Posted by txag_530i' post='1017317' date='Sep 26 2009, 03:36 AM

...which is located in the trunk.

On the lid....

Oct 26, 2009 | 11:31 AM

yellowpad

Members

Joined: Dec 2007

Posts: 47

Likes: 0

Someone please tell me which fuse is for WINDSHIELD WIPER..........

I like to disable it temporary.

Quote:

Originally Posted by chris f' post='1023732' date='Oct 3 2009, 07:36 AM

On the lid....

Oct 26, 2009 | 01:15 PM

Bedford530i

Senior Members

Joined: Aug 2004

Posts: 408

Likes: 0

From: Bedford, MA

My Ride: 2004 530i 6-speed Titanium Silver/Black Interior Premium Package Sport Package Aux input 30 GB video iPod Cold Weather Package Xenon Red rear reflectors Tint Clear Bra

I don't see the one for the heated side-mirrors!

My driver-side mirror is not heating up so I was hoping the fuse for it would here.

I'll check my car before I drive home.

Thanks!

Oct 27, 2009 | 07:18 PM

Bedford530i

Senior Members

Joined: Aug 2004

Posts: 408

Likes: 0

From: Bedford, MA

My Ride: 2004 530i 6-speed Titanium Silver/Black Interior Premium Package Sport Package Aux input 30 GB video iPod Cold Weather Package Xenon Red rear reflectors Tint Clear Bra

I checked the diagram in my car and couldn't find the fuse for the driver side heated mirror! Anyone know if there is one for it?
